Item Code: K0339.04206

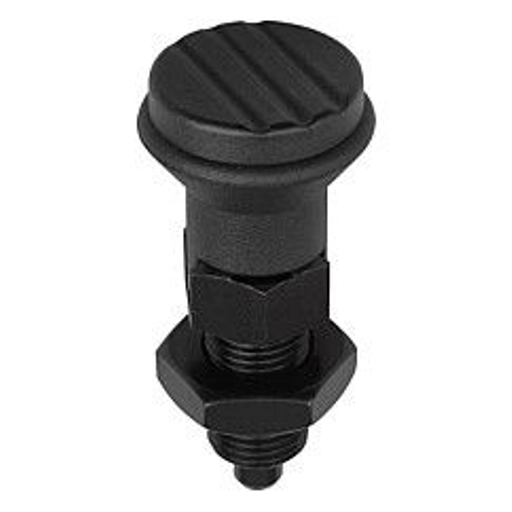

Indexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Item Code: K0339.04206

Indexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. With Locking Slot. Hardened. Stainless Steel.

Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Mushroom knob in anthracite grey thermoplastic. Surface finish:
- Steel version, locking pin hardened:
black oxide finish, locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged. Form C or D is recommended for applications in which gradual disengagement of the locking bolt is desired, without any relocking of the locking pin.

Quick Links

Dispatch by 02/07/25

Black
6
M12X1.5
25
1.8
56
20
8
17
with locknut
Yes
14
6
Hardened
6

£18.99  ea. Excl VAT £22.79  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £15.57 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Mushroom knob in anthracite grey thermoplastic. Surface finish:
- Steel version, locking pin hardened:
black oxide finish, locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged. Form C or D is recommended for applications in which gradual disengagement of the locking bolt is desired, without any relocking of the locking pin.

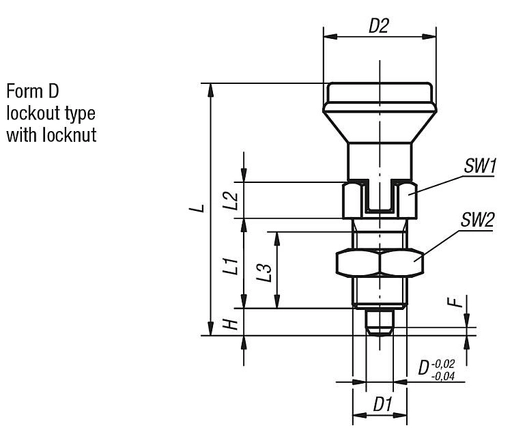

Component colourBlack
D6
D1M12X1.5
D225
Fx30°1.8
L56
L120
L28
L317
Locknutwith locknut
LockoutYes
Spring force final pressure F2 approx. N14
Spring force initial pressure F1 approx. N6
Surface finish / bodyHardened
Travel S6
STP
TypeLockout
Body MaterialStainless Steel
Thread SizeM12
Pin Diameter6mm
Pin Length6mm
