Heavy Duty Threaded Line Vac In Hardened Alloy 1 1/4" Pipe

Item Code: 151125

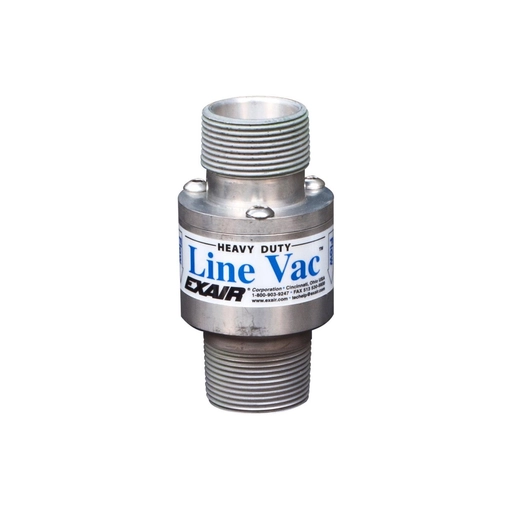

Heavy Duty Threaded Line Vac In Hardened Alloy 1 1/4" Pipe

Item Code: 151125

Heavy Duty Threaded Line Vac In Hardened Alloy 1 1/4" Pipe

These Exair heavy duty threaded line vacs in hardened alloy for 1 1/4" pipe only require a compressed air connection to work.
All items are manufactured with BSP threads or have a suitable adapter provided.
Each Line Vac is designed to fit into standard pipe sizes with both inlet and outlet being the same dimensions.
The heavy duty line vac is Exair's most powerful conveyor. With increased engineered performance over standard line vacs, heavy duty line vacs help convey materials over longer distances. For detailed performance figure please see the Exair Catalogue under the 'download section'

Pipe Size 1-1/4"NPT
Air Consumption 1388L/m
Vacuum -21.0kPa
Operating Temperature 204C
All measurements based on 5.5Bar

Other performance figures are available in the catalogue under the 'downloads' tab.

Quick Links

Dispatch by 07/07/25

Bore Diameter: 25mm

Material: Hardened Alloy Steel
