NEMA 4 Duel Cabinet Cooler. 240 VAC Thermostat Control. 3400 Btu/hr Cooling Capacity.

Item Code: 4850-240

NEMA 4 Duel Cabinet Cooler. 240 VAC Thermostat Control. 3400 Btu/hr Cooling Capacity.

Item Code: 4850-240

NEMA 4 Duel Cabinet Cooler. 240 VAC Thermostat Control. 3400 Btu/hr Cooling Capacity.

Product Specifications
Air Consumption: 50CFM
Cooling Capacity:3400Btu/hr
Sound Level: 84dBA
All measurements based on 6.9Bar
Material: Aluminium

All items are manufactured with BSP threads or have a suitable adapter provided.
Cabinet Coolers must be used with clean dry air a Filter Regulator is recommended as freezing can occur.

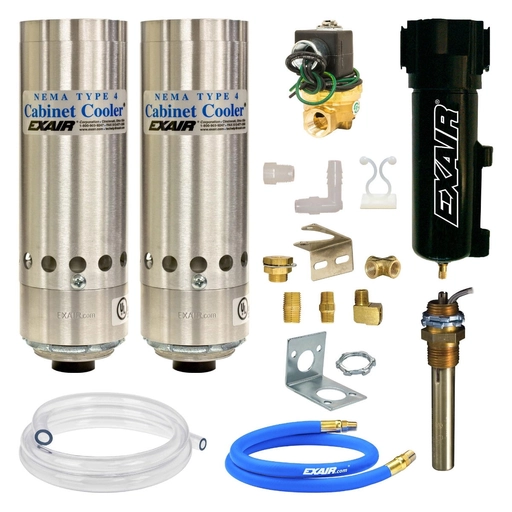

Kit Includes:
2x 4625 - Cabinet Cooler, 1700 Btu/hr. 2x 4904 - Cold air distribution kit 1x 4908 - Dual Cabinet Cooler Hardware 1x 9017 - Thermostat (mounting bracket and nut included for NEMA 4) 1x 9035 - solenoid valve 1x 9032 - Compressed air filter 1x 900396 - Filter Mounting Bracket

Quick Links

Dispatch by 19/08/25

Cabinet Rating: NEMA 4 (IP66)

Cooler Type: standard

Cooling Rate: 3400 Btu/hr

Material: Aluminium

Product: Cabinet Cooler

Style: Cabinet Cooler With Thermostat Control

Voltage: 240VAC

£2284.83 ea. Excl VAT £2741.80 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Product Dimensions

Specifications

Cabinet Rating	NEMA 4 (IP66)
Cooler Type	standard
Cooling Rate	3400 Btu/hr
Material	Aluminium
Product	Cabinet Cooler
Style	Cabinet Cooler With Thermostat Control
Voltage	240VAC

NEMA 4 Duel Cabinet Cooler. 240 VAC Thermostat Control. 3400 Btu/hr Cooling Capacity.

NEMA 4 Duel Cabinet Cooler. 240 VAC Thermostat Control. 3400 Btu/hr Cooling Capacity.
