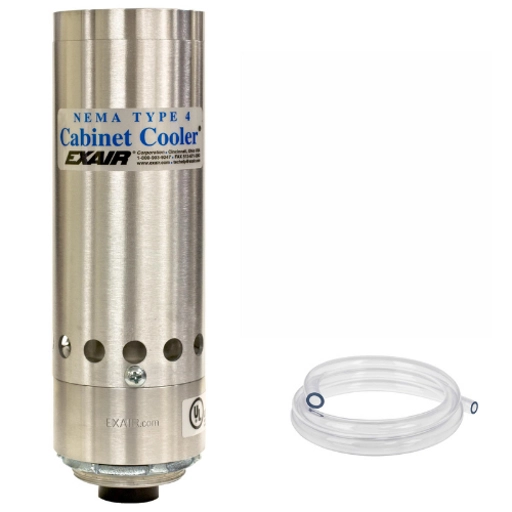

NEMA 4 Cabinet Cooler. Continuous Operation. 2800 Btu/hr Cooling Capacity. Filter Not Included.

Item Code: 4740J

NEMA 4 Cabinet Cooler. Continuous Operation. 2800 Btu/hr Cooling Capacity. Filter Not Included.

Item Code: 4740J

NEMA 4 Cabinet Cooler. Continuous Operation. 2800 Btu/hr Cooling Capacity. Filter Not Included.

Air Consumption: 1133L/m
Cooling Capacity: 2800Btu/hr
Sound Level: 88dBA
All measurements based on 6.9Bar
Material: Aluminium

All items are manufactured with BSP threads or have a suitable adapter provided.
Cabinet Coolers must be used with clean dry air a Filter Regulator is recommended as freezing can occur.

Kit Includes:
NEMA 4 Cabinet Cooler Only, 2800 Btu/hr, 1/4 NPT
4904 Cold Air Distribution Kit.

Quick Links

Dispatch by 13/08/25

Cooler Type: standard

Cabinet Rating: NEMA 4 (IP66)

Cooling Rate: 2800 Btu/hr

Material: Aluminium

Product: Cabinet Cooler

Style: Cabinet Cooler For Continuous Operation

£599.69 ea. Excl VAT £719.63 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

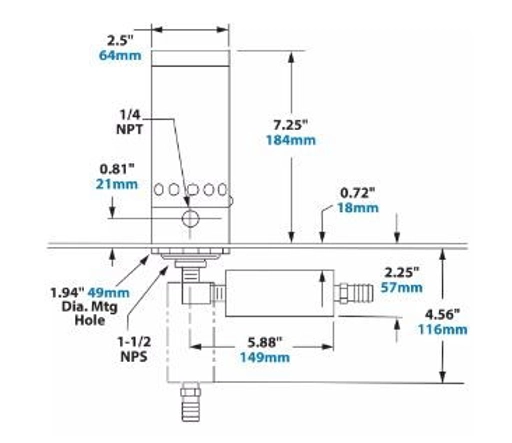

Product Dimensions

Specifications

Cooler Type	standard
Cabinet Rating	NEMA 4 (IP66)
Cooling Rate	2800 Btu/hr
Material	Aluminium
Product	Cabinet Cooler
Style	Cabinet Cooler For Continuous Operation

Downloads

4740J Datasheet

Download STP

Installation & Maintenance Guide

NEMA 4 Cabinet Cooler. Continuous Operation. 2800 Btu/hr Cooling Capacity. Filter Not Included.

NEMA 4 Cabinet Cooler. Continuous Operation. 2800 Btu/hr Cooling Capacity. Filter Not Included.
