1-1/4" 316 Stainless Steel Vac

Item Code: 6062-316

1-1/4" 316 Stainless Steel Vac

Item Code: 6062-316

1-1/4" 316 Stainless Steel Vac

This 316 stainless steel Exair line vac for 1 1/4" pipe and 32mm bore only requires a compressed air connection to work.
All items are manufactured with BSP threads or have a suitable adapter provided.
Each Line Vac is designed to fit into standard pipe sizes with both inlet and outlet being the same dimensions.

Pipe Size 1-1/4"
Air Consumption 733L/m
Vacuum -11.0kPa
Operating Temperature 204C
All measurements based on 5.5Bar

Other performance figures are available in the catalogue in the 'downloads' tab.

Quick Links

Dispatch by 16/06/25

Material: 316 Stainless Steel

Bore Diameter: 25mm

Filter / Regulator 40 SCFM Flow Rate 1/4 BSP -
Filter / Regulator 40 SCFM Flow Rate 1/4 BSP

Qty

Mounting Bracket for 1 1/4" & 1 1/2" Line Vac - £41.19
Mounting Bracket for 1 1/4" & 1 1/2" Line Vac

Qty

£762.62 ea. Excl VAT £915.14 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 +	£686.36	10%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Filter / Regulator 40 SCFM Flow Rate 1/4 BSP -
Filter / Regulator 40 SCFM Flow Rate 1/4 BSP

Qty

Mounting Bracket for 1 1/4" & 1 1/2" Line Vac - £41.19
Mounting Bracket for 1 1/4" & 1 1/2" Line Vac

Qty

Quick Links

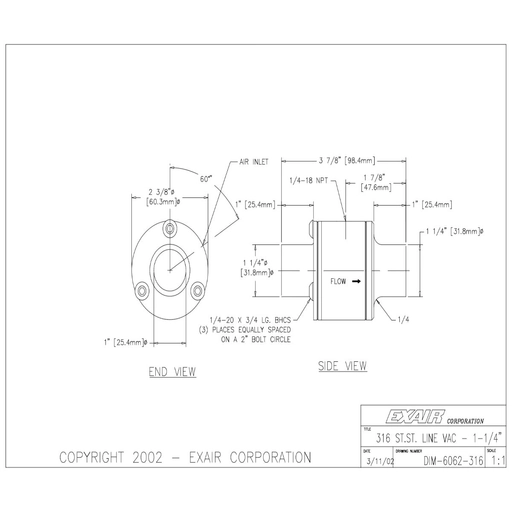

Product Dimensions

Specifications

Material	316 Stainless Steel
Bore Diameter	25mm
