Item Code: 6063-316

1-1/2" 316 Stainless Steel Vac

Item Code: 6063-316

1-1/2" 316 Stainless Steel Vac

This 316 stainless steel Exair line vac for 1 1/2" pipe and 32mm bore only requires a compressed air connection to work.
All items are manufactured with BSP threads or have a suitable adapter provided.
Each Line Vac is designed to fit into standard pipe sizes with both inlet and outlet being the same dimensions.

Pipe Size 1-1/2"
Air Consumption 934L/m
Vacuum -9.0kPa
Operating Temperature 204C
All measurements based on 5.5Bar

Other performance figures are available in the catalogue in the 'downloads' tab.

Quick Links

Dispatch by 30/07/25

32mm
316 Stainless Steel
Qty
Qty

£896.07  ea. Excl VAT £1075.28  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £806.46 10%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty

Quick Links



Bore Diameter32mm
Material316 Stainless Steel
6063-316 Datasheet

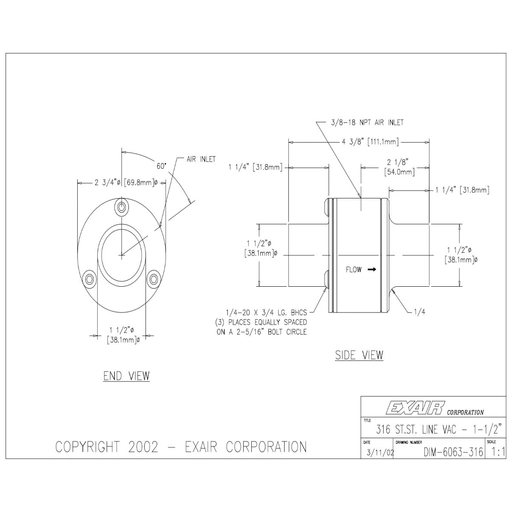

Click For Dimensions
Download STP
