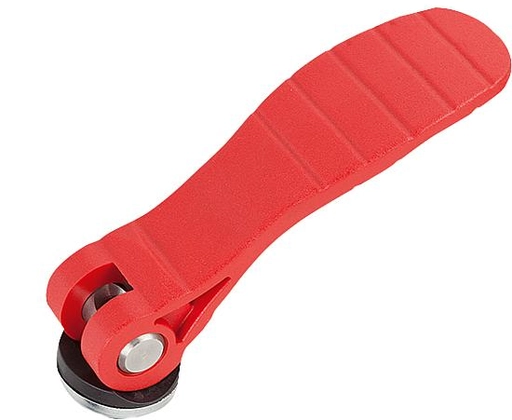

Cam Lever. 71.5mm Handle Length. M5 Steel Thread.

Item Code: K0646.15218405

Cam Lever. 71.5mm Handle Length. M5 Steel Thread.

Clamp-Lever-Drawing-Female_1200x1200.jpg?

Item Code: K0646.15218405

Cam Lever. 71.5mm Handle Length. M5 Steel Thread.

Material:
Grip and thrust washer plastic PA 66 fibreglass reinforced.
Hinge pins stainless steel 1.4305.
Studs and washer steel grade 5.8

Version:
Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud and washer trivalent blue passivated or bright stainless steel.

Note:
Plastics are subject to creeping under load (retardation), this can cause reduced clamping force.

Quick Links

Dispatch by 05/07/25

A: 71,5

A1: 79,6

B: 22

B1: 16

Clamping force F (kN): 2,5

Colour

D: M5

D1: 18,1

D2: 9

H: 14

H1: 23,4

Hand force FH N: 125

Travel S: 1,15

£5.44 ea. Excl VAT £6.53 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£4.46	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

A	71,5
A1	79,6
B	22
B1	16
Clamping force F (kN)	2,5
Colour	Red
D	M5
D1	18,1
D2	9
H	14
H1	23,4
Hand force FH N	125
Travel S	1,15

Specifications

Thread Type	Female
Thread Size	M5
Thread Material	Steel
Thrust Washer Material	Plastic
Handle Material	Plastic
Handle Length	71.5mm
Colour	Red
