Item Code: K0318.105

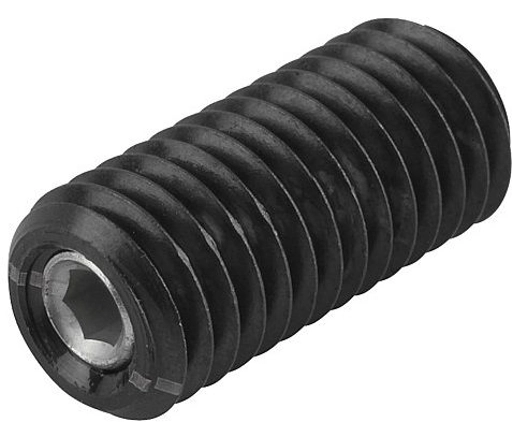

Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 3N. Steel.

Item Code: K0318.105

Material:
Sleeve in steel quality class 5.8.
Pressure pin in plastic.
Spring in spring steel D. Surface finish:
Black oxide finish.

Quick Links

3 in stock

Assembly key g: 14

D: M5

D1: 2,4

H: 2,3

L: 18

N: 0,8

S: 1,5

Spring force initial pressure F1 approx. N: 3

Spring force final pressure F2 approx. N: 10

T1: 0,8

Assembly Key For M5 Spring Plungers - £12.60
Assembly Key For M5 Spring Plungers

Qty

£2.44 ea. Excl VAT £2.93 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£2.10	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Assembly Key For M5 Spring Plungers - £12.60
Assembly Key For M5 Spring Plungers

Qty

Quick Links

Material:
Sleeve in steel quality class 5.8.
Pressure pin in plastic.
Spring in spring steel D. Surface finish:
Black oxide finish.

Assembly key g	14
D	M5
D1	2,4
H	2,3
L	18
N	0,8
S	1,5
Spring force initial pressure F1 approx. N	3
Spring force final pressure F2 approx. N	10
T1	0,8
