Material:
Thermoplastic, graphite black.
Bush or screw steel 5.8.
Version:
Screw blue passivated.
Application:
Sensitive electrical or electronic equipment, components and devices (ESD sensitive elements) may be damaged or destroyed by electrostatic discharges (ESD) in the immediate vicinity.
Electrostatic discharges can come from people or through handling ESD sensitive components (e.g. during production, assembly, transport, storage etc).
Electrically conductive products which conform to DIN EN 61340-5-1 are essential within electronic environments to prevent an electrostatic discharge.
These products can be used for ESD applications or in ESD protection areas (EPA) in accordance with DIN EN 61340-5-1.
Safety:
These ESD products can also be used for devices, components and protection systems in areas with high risk of explosion.
Use of these ESD products prevents the occurrence of electrostatic spark discharges, eliminating the potential ignition of gases and dusts which could lead to explosions in enclosed spaces.
Manufacturers and operators must use and conform to ATEX directives for the protection of persons working in areas with high risk of explosion.
Target groups:
Device manufacturers required to conform to ATEX product directive 2014/34/EU.
Operators required to conform to ATEX worker protection directive 1999/92/EC.

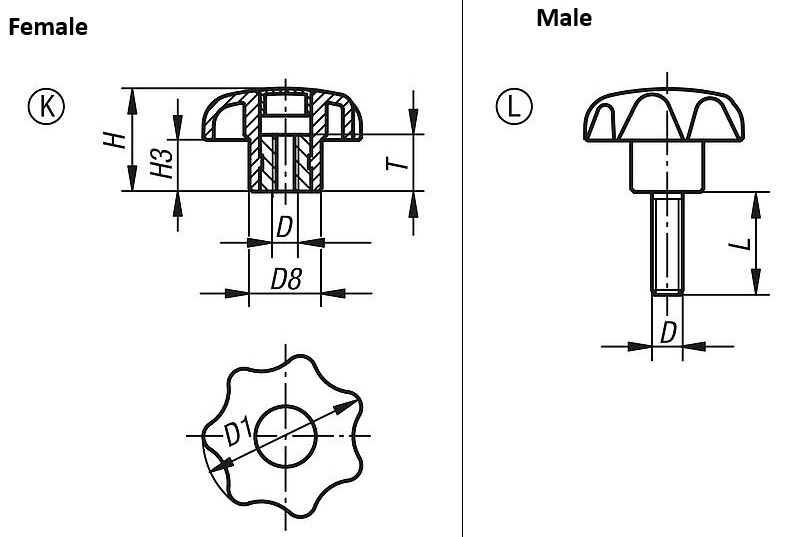

Drawing reference:
Female: tapped bush, with cap
Male: external thread
Quick Filters
Choose Vertical Base Type
Flat
Side Mount
Straight
Choose Horizontal Base Type
Flat
Side Mount
Straight
Choose Stroke Length
0-40mm
41-80mm
81mm+
Choose Type
Hook
Latch
Vertical Latch
Form |
Colour |
D |
L |
D1 |
H |
T |
H3 |
DIN |
D8 |
Price (Excl VAT) | Price (Inc VAT) | Compare | Qty | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
|
|
|
|||||||||||
K0155.1120824 View productAnti-Static Star Grip. M8 Steel Thread. 40mm Grip Diameter. |
K | - | M8 | - | 40 | 25 | 14 | 13 | similar to DIN 6336 | 18 | £1.71 £2.05 |
0 Dispatched 11/06/25 |
Form |
Colour |
D |
L |
D1 |
H |
T |
H3 |
DIN |
D8 |
Price (Excl VAT) | Price (Inc VAT) | Compare | Qty | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
|
|
|
|||||||||||
K0155.11408124X25 View productAnti-Static Star Grip. M8x25mm Steel Thread. 40mm Grip Diameter. |
L | Black | M8 | 25 | 40 | 25 | - | 13 | similar to DIN 6336 | 18 | £2.25 £2.70 |
0 Dispatched 11/06/25 |
Showing products per page
Dispatch by 11/06/25
Item Code: K0155.1120824
Anti-Static Star Grip. M8 Steel Thread. 40mm Grip Diameter.
£1.71 Excl VAT £2.05 Inc VAT
Price breaks available
Text
Dispatch by 11/06/25
Item Code: K0155.11408124X25
Anti-Static Star Grip. M8x25mm Steel Thread. 40mm Grip Diameter.
£2.25 Excl VAT £2.70 Inc VAT
Price breaks available
Text
Showing products per page
Anti-Static Star Grip. M8 Steel Thread. 40mm Grip Diameter.
Dispatch by 11/06/25
Item Code: K0155.1120824
£1.71 Excl VAT £2.05 Inc VAT
Price breaks available
Text
Anti-Static Star Grip. M8x25mm Steel Thread. 40mm Grip Diameter.
Dispatch by 11/06/25
Item Code: K0155.11408124X25
£2.25 Excl VAT £2.70 Inc VAT
Price breaks available
Text
