Back to Adjustable Cam Levers With Aluminium Handles & Stainless Steel Threads M5-M10

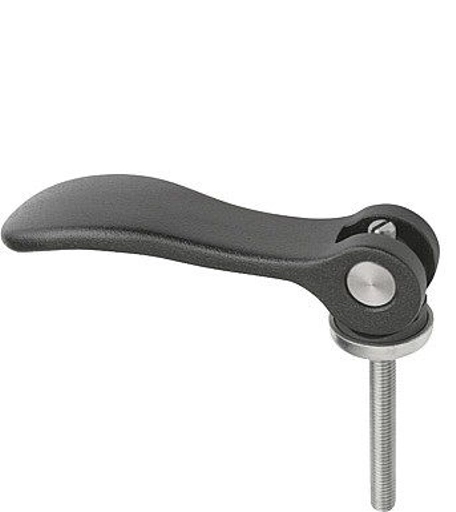

Adjustable Cam Lever. 70.4mm Handle Length. M5x20mm Steel Thread

Item Code: K0006.1501105X20

Adjustable Cam Lever. 70.4mm Handle Length. M5x20mm Steel Thread

Steel_343x385.jpg?

Male-Thread-Cam-lever_1200x1200.jpg?

Item Code: K0006.1501105X20

Adjustable Cam Lever. 70.4mm Handle Length. M5x20mm Steel Thread

Material:
Handles cast aluminium EN AC-46200.
Thrust washer plastic PA 66 GF 35-X fibreglass reinforced.
Hinge pins stainless steel 1.4305.
Studs and washer steel grade 5.8 or stainless steel 1.4305.

Version:
Handles powder-coated, black.
Thrust washer, black.
Hinge pins, bright
Studs and washer blue chromed steel or bright stainless steel.

Note:
Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).

Quick Links

Dispatch by 09/06/25

Clamping force F (kN): 4

Hand force FH N: 120

Travel S: 1.2

Colour

D: M5

L: 20

D1: 18.1

A: 70.4

B: 21.5

H: 14.5

H1: 22

B1: 15

A1: 79.2

D2: 9

£9.60 ea. Excl VAT £11.52 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£7.87	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Handles cast aluminium EN AC-46200.
Thrust washer plastic PA 66 GF 35-X fibreglass reinforced.
Hinge pins stainless steel 1.4305.
Studs and washer steel grade 5.8 or stainless steel 1.4305.

Version:
Handles powder-coated, black.
Thrust washer, black.
Hinge pins, bright
Studs and washer blue chromed steel or bright stainless steel.

Note:
Adjustable cam levers are used if the position of the lever relative to the axis of tension only permits one specific position (interference circle). The exact position of the lever is adjusted using a screwdriver on the fine thread setscrew.
Plastics are subject to creeping under load (retardation).

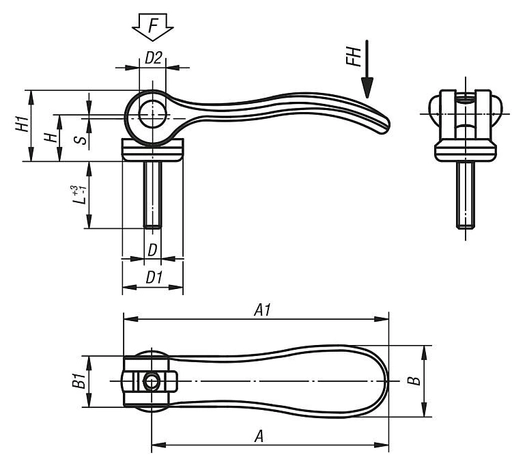

Product Dimensions

Clamping force F (kN)	4
Hand force FH N	120
Travel S	1.2
Colour	Black
D	M5
L	20
D1	18.1
A	70.4
B	21.5
H	14.5
H1	22
B1	15
A1	79.2
D2	9

Thread Type	Male
Thread Size	M5
Thread Length	20mm
Thread Material	Steel
Thrust Washer Material	Plastic
Handle Material	Aluminium
Handle Length	70.4mm
Colour	Black
